Regain Your Stride: Custom Ankle Foot Orthotics Engineered for Your Life

ElegantAFO focuses on the patient, ensuring comfortable pain-free walking by delivering gold-standard, custom-fabricated ankle foot orthoses (AFOs). We strive to provide fast service with industry-leading turnaround times.

Contact Us Explore Our Products

About ElegantAFO Orthotics

Founded on the belief that every patient deserves a perfectly fitted orthotic, ElegantAFO combines decades of clinical expertise with cutting-edge fabrication technology.

Patient-First Philosophy

Every decision starts with the patient's goals, lifestyle, and comfort.

Expert Craftsmanship

Precision-fabricated orthotics built with premium materials and meticulous attention to detail.

Collaborative Care

We work alongside your entire care team for seamless rehabilitation outcomes.

Our AFO Solutions

Each orthotic is precision-fabricated to match your unique anatomy, lifestyle, and clinical requirements.

Gauntlet Line

Leather-lined gauntlet-style AFOs offering durable support and comfort for a wide range of lower-limb conditions, from PTTD to post-surgical recovery.

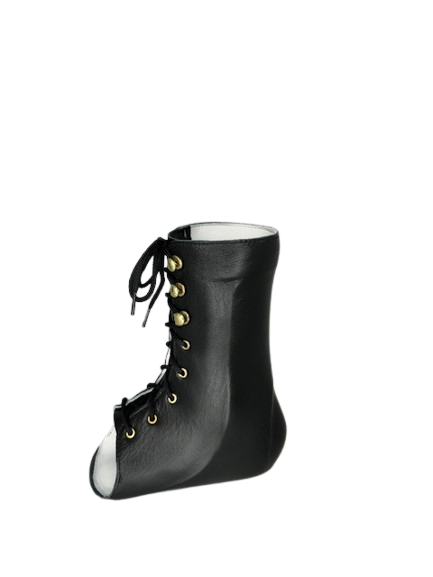

Standard Leather Gauntlet AFO

Standard Leather Gauntlet

Classic Durability & Comfort

The gold standard for treating PTTD and related pathologies. A 9-inch leather-lined gauntlet with a 4mm polypropylene shell that distributes forces equally throughout the lower extremity.

Clinical Indications

  • PTTD (Posterior Tibial Tendon Dysfunction)
  • Talocalcaneal varus or valgus
  • Tibialis tendonitis (posterior or anterior)
  • Severe pronation or pes planus
  • Ankle arthritis or DJD (Degenerative Joint Disease)
  • Charcot foot
  • Ankle, subtalar, or midtarsal trauma
  • Chronic Achilles tendinitis

Product Details

  • 9-inch height distributes forces equally throughout the lower extremity
  • 4mm polypropylene shell wraps just anterior to the malleoli with customizable trim lines
  • Formed over a positive model of the patient’s foot for precision fit
  • Leather lining over model, followed by plastic layer and sewn leather top cover
  • Can function as a water device — wash immediately after saltwater use
  • Fully customizable per the practitioner’s discretion

Suggested L Codes

  • L1940 – Ankle foot orthosis, plastic or other material, custom fabricated
  • L2820 – Addition to Lower Extremity Orthosis, Soft Interface for Molded Plastic, Below Knee Section
  • L2330 – Leather or similar material lacer molded from a model of the patient

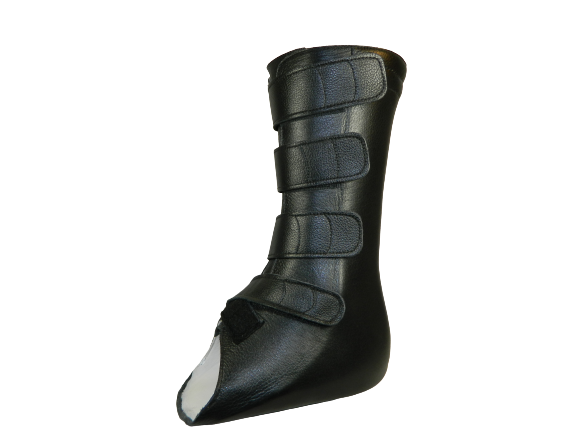

Tall Gauntlet AFO

Tall Gauntlet

Maximum Proximal Control

A 12-inch tall gauntlet AFO designed for patients requiring extra support and height, recommended for patients weighing more than 225 pounds.

Clinical Indications

  • PTTD (Posterior Tibial Tendon Dysfunction)
  • Talocalcaneal varus or valgus
  • Tibialis tendonitis (posterior or anterior)
  • Severe pronation or pes planus
  • Ankle arthritis or DJD (Degenerative Joint Disease)
  • Charcot foot
  • Ankle, subtalar, or midtarsal trauma
  • Chronic Achilles tendinitis

Product Details

  • 12-inch height from plantar surface to top of device
  • 4mm polypropylene shell (reducible to 3mm for flexibility, or increased to 5-6mm for greater control)
  • Recommended for patients weighing more than 225 pounds
  • Formed over a positive model of the patient’s foot for precision fit
  • Leather lining over model, followed by plastic layer and sewn leather top cover
  • Fully customizable per the practitioner’s discretion

Suggested L Codes

  • L1940 – Ankle foot orthosis, plastic or other material, custom fabricated
  • L2820 – Addition to Lower Extremity Orthosis, Soft Interface for Molded Plastic, Below Knee Section
  • L2330 – Leather or similar material lacer molded from a model of the patient

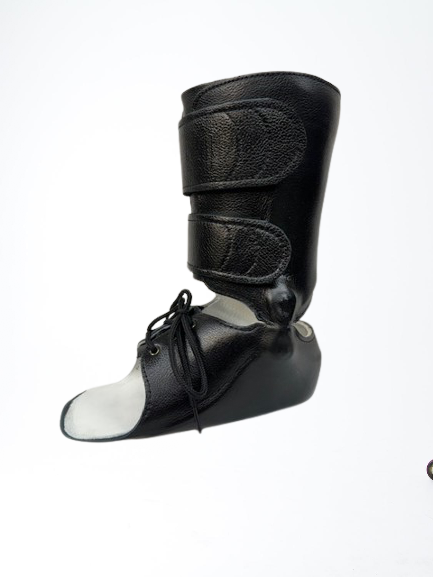

Articulated Gauntlet AFO

Articulated Gauntlet

Controlled Ankle Mobility

A leather-lined gauntlet AFO with a polypropylene shell and articulating ankle joint, offering both comfort and precision control for a wide range of lower-limb conditions.

Clinical Indications

  • Mild Posterior Tibial Tendon Dysfunction (PTTD)
  • Mild to moderate Degenerative Joint Disease (DJD)
  • Talocalcaneal varus or valgus
  • Ankle instability
  • Mild to moderate pronation
  • Paralytic equines or drop foot
  • Trauma

Features & Options

  • Soft, comfortable molded leather inner shell lining
  • Padded with 1/8″ medical-grade foam
  • Polypropylene shell
  • Available with Free Motion or Dorsi-Assist ankle joint (Tamarack)
  • Full-length footplate with removable insole

Suggested L Codes

  • L1970 – Ankle foot orthosis, plastic with ankle joint, custom fabricated
  • L2820 – Addition to Lower Extremity Orthosis, Soft Interface for Molded Plastic, Below Knee Section
  • L2330 – Leather or similar material lacer molded from a model of the patient

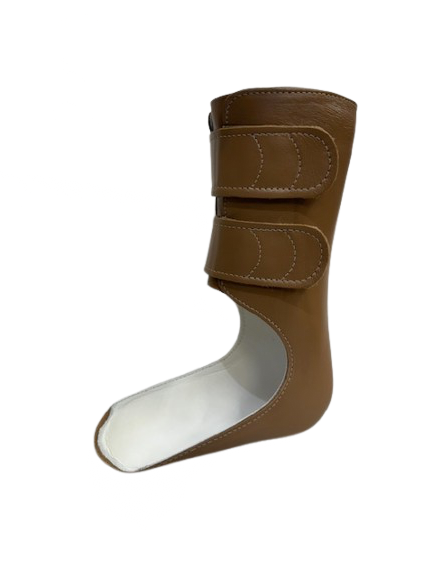

Balance Brace AFO

Balance Brace

Stability & Fall Prevention

A lightweight support brace engineered to improve gait stability and reduce fall risk for patients experiencing imbalance or impaired proprioception.

Clinical Indications

  • Unstable gait
  • Risk of fall due to impaired balance
  • Stroke
  • Foot drop
  • Vestibular disorder
  • Chronic ankle instability
  • Arthritic ankle
  • Diabetic peripheral neuropathy

Suggested L Codes

  • L1940 – Ankle foot orthosis, plastic or other material, custom fabricated
  • L2330 – Leather or similar material lacer molded from a model of the patient
  • L2820 – Addition to Lower Extremity Orthosis, Soft Interface for Molded Plastic, Below Knee Section

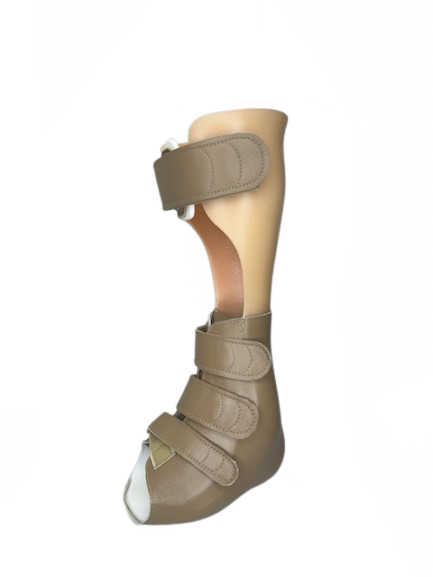

Extended Half and Half AFO

Extended Half & Half

Dual-Zone Support

A hybrid AFO combining a polypropylene shell with leather lining and an extended design for comprehensive control of complex foot and ankle pathologies.

Clinical Indications

  • PTTD (Posterior Tibial Tendon Dysfunction)
  • Talocalcaneal varus or valgus
  • Tibialis tendonitis (posterior or anterior)
  • Severe pronation or pes planus
  • Ankle arthritis or Degenerative Joint Disease (DJD)
  • Charcot foot
  • Ankle, subtalar or midtarsal trauma
  • Chronic Achilles tendonitis

Features & Options

  • Soft, comfortable molded leather inner shell lining
  • Padded with 1/8″ medical-grade foam
  • Full-length footplate with custom removable insole
  • Polypropylene shell

Suggested L Codes

  • L1960 – Ankle foot orthosis, plastic or other material, custom fabricated
  • L2820 – Addition to Lower Extremity Orthosis, Soft Interface for Molded Plastic, Below Knee Section
  • L2330 – Leather or similar material lacer molded from a model of the patient

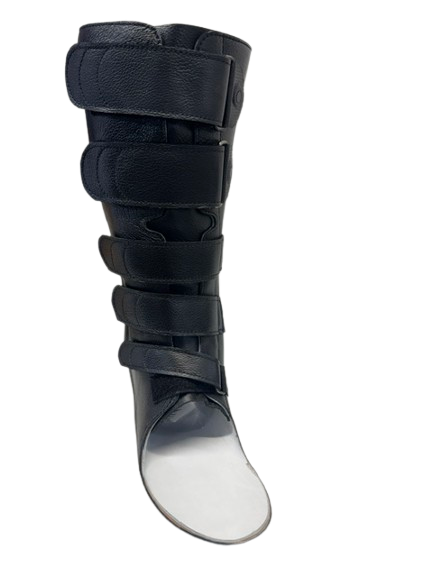

Extended Unweighting AFO

Extended Unweighting

Pressure Redistribution

An extended AFO designed for patients requiring comprehensive plantar pressure relief and medial-lateral control for complex foot and ankle conditions.

Clinical Indications

  • Adult acquired flatfoot stage III & IV
  • PTTD (Posterior Tibial Tendon Dysfunction)
  • Talocalcaneal varus or valgus
  • Tibialis tendonitis (posterior or anterior)
  • Severe pronation or pes planus
  • Ankle arthritis or DJD (Degenerative Joint Disease)
  • Charcot foot
  • Ankle, subtalar, or midtarsal trauma
  • Chronic Achilles tendinitis

Features & Options

  • Full-length footplate with custom removable insole
  • Soft, comfortable molded leather inner shell lining
  • Padded with 1/8″ medical-grade foam
  • Polypropylene shell

Suggested L Codes

  • L1960 – Ankle foot orthosis, plastic or other material, custom fabricated
  • L2820 – Addition to Lower Extremity Orthosis, Soft Interface for Molded Plastic, Below Knee Section
  • L2330 – Leather or similar material lacer molded from a model of the patient

Boot Line

Comprehensive boot walkers and post-amputation solutions for complex foot and ankle pathologies requiring full enclosure and maximum protection.

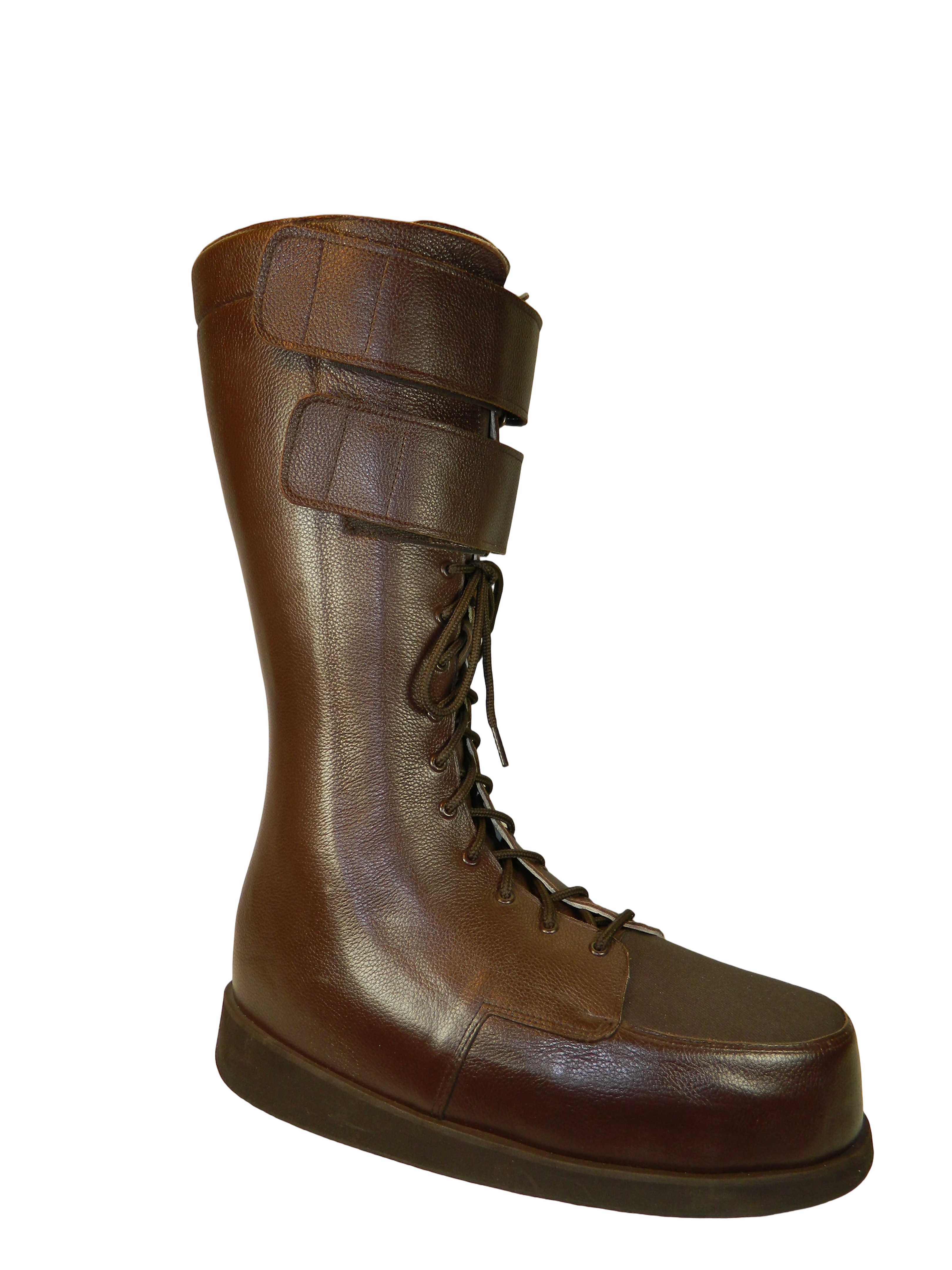

Hybrid Boot Walker AFO

Hybrid Boot

Support & Motion Control

The Hybrid Boot Walker provides support to the ankle and foot, controls motion, and provides partial unweighting. Incorporates a custom multi-density inlay for total contact and pressure relief.

Clinical Indications

  • Charcot foot and ankle
  • Post fractures of the distal tibia
  • Neuropathic conditions of the ankle and foot
  • Severe ankle instability
  • Talocalcaneal varus or valgus

Features & Options

  • Custom-molded shoe
  • Notched at base of calf to unweight ankle and foot
  • Custom, multi-density removable insole
  • Soft, comfortable molded leather inner shell lining
  • Padded with medical-grade foam
  • Polypropylene shell
  • Removable, custom-molded multi-density foot orthotic included

Suggested L Codes

  • L1960 – Ankle foot orthosis, plastic or other material, custom fabricated
  • L2330 – Leather or similar material lacer molded from a model of the patient
  • L2820 – Addition to Lower Extremity Orthosis, Soft Interface for Molded Plastic, Below Knee Section
  • L3400 – Addition to lower extremity orthosis, shoe, leather with soft materials

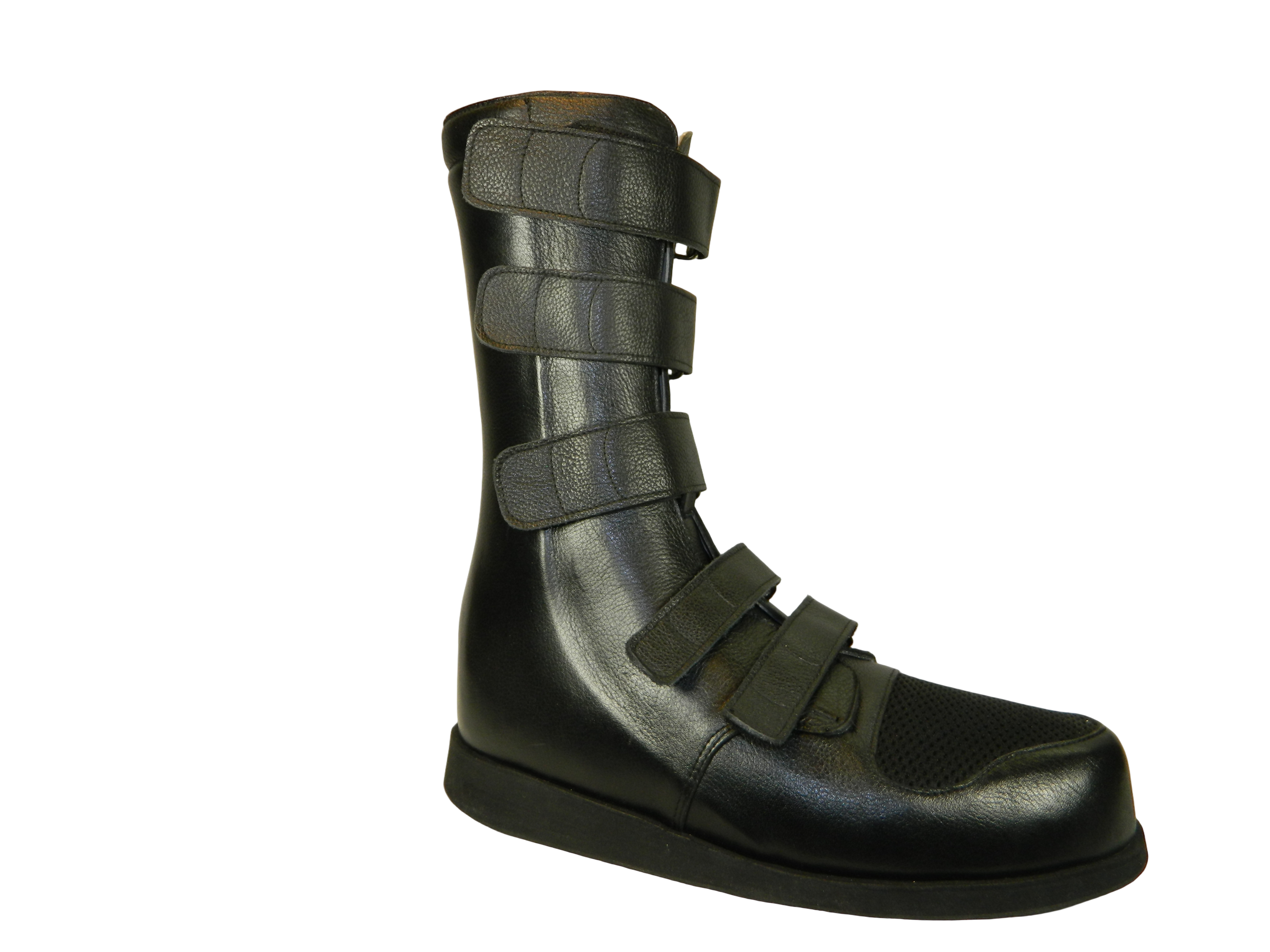

Tampa Boot Walker AFO

Tampa Boot

Comprehensive Boot Walker

The Tampa Boot Walker combines a tall brace with a closed-toe custom-molded shoe. Features a custom-molded, multi-density removable insole for total contact comfort.

Clinical Indications

  • Posterior Tibial Tendon Dysfunction (PTTD)
  • Talocalcaneal varus or valgus
  • Tibial tendonitis
  • Severe pronation or pes planus
  • Ankle arthritis or Degenerative Joint Disorder (DJD)
  • Charcot foot
  • Chronic Achilles tendonitis
  • Ankle, subtalar or mid-tarsal trauma

Features & Options

  • Full-length footplate
  • Custom removable insole
  • Soft, comfortable molded leather inner shell lining
  • Padded with medical-grade foam
  • Polypropylene shell

Suggested L Codes

  • L1960 – Ankle foot orthosis, plastic or other material, custom fabricated
  • L2330 – Leather or similar material lacer molded from a model of the patient
  • L2820 – Addition to Lower Extremity Orthosis, Soft Interface for Molded Plastic, Below Knee Section
  • L3400 – Addition to lower extremity orthosis, shoe, leather with soft materials

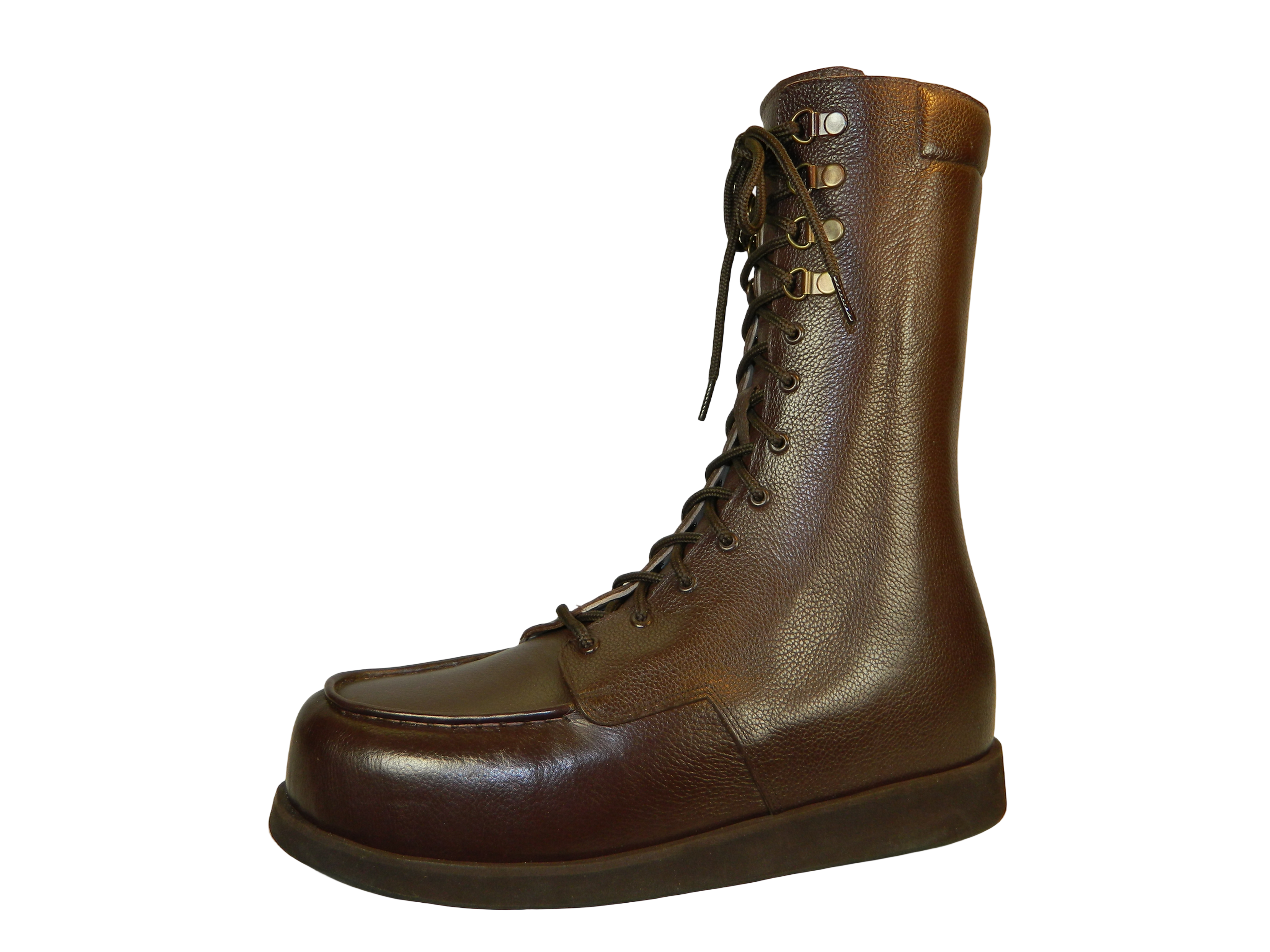

Partial Boot Walker AFO

Partial Boot

Post-Amputation Support

The Partial Boot Walker features high-quality leather construction, a removable custom-molded orthotic, and a carbon graphite footplate with rubber sole for post-amputation support and mobility.

Clinical Indications

  • Trans-metatarsal amputations
  • Chopart’s amputations
  • Syme’s amputations

Features & Options

  • Fine quality leather construction
  • Custom, multi-density removable insole
  • Partial foot filler
  • Padded with medical-grade foam
  • Polypropylene AFO shell
  • Carbon graphite footplate with rubber sole

Suggested L Codes

  • L1940 – Ankle foot orthosis, plastic or other material, custom fabricated
  • L2330 – Leather or similar material lacer molded from a model of the patient
  • L2820 – Addition to Lower Extremity Orthosis, Soft Interface for Molded Plastic, Below Knee Section
  • L5000 – Partial foot, shoe insert with longitudinal arch, toe filler
  • L3400 – Addition to lower extremity orthosis, shoe, leather with soft materials

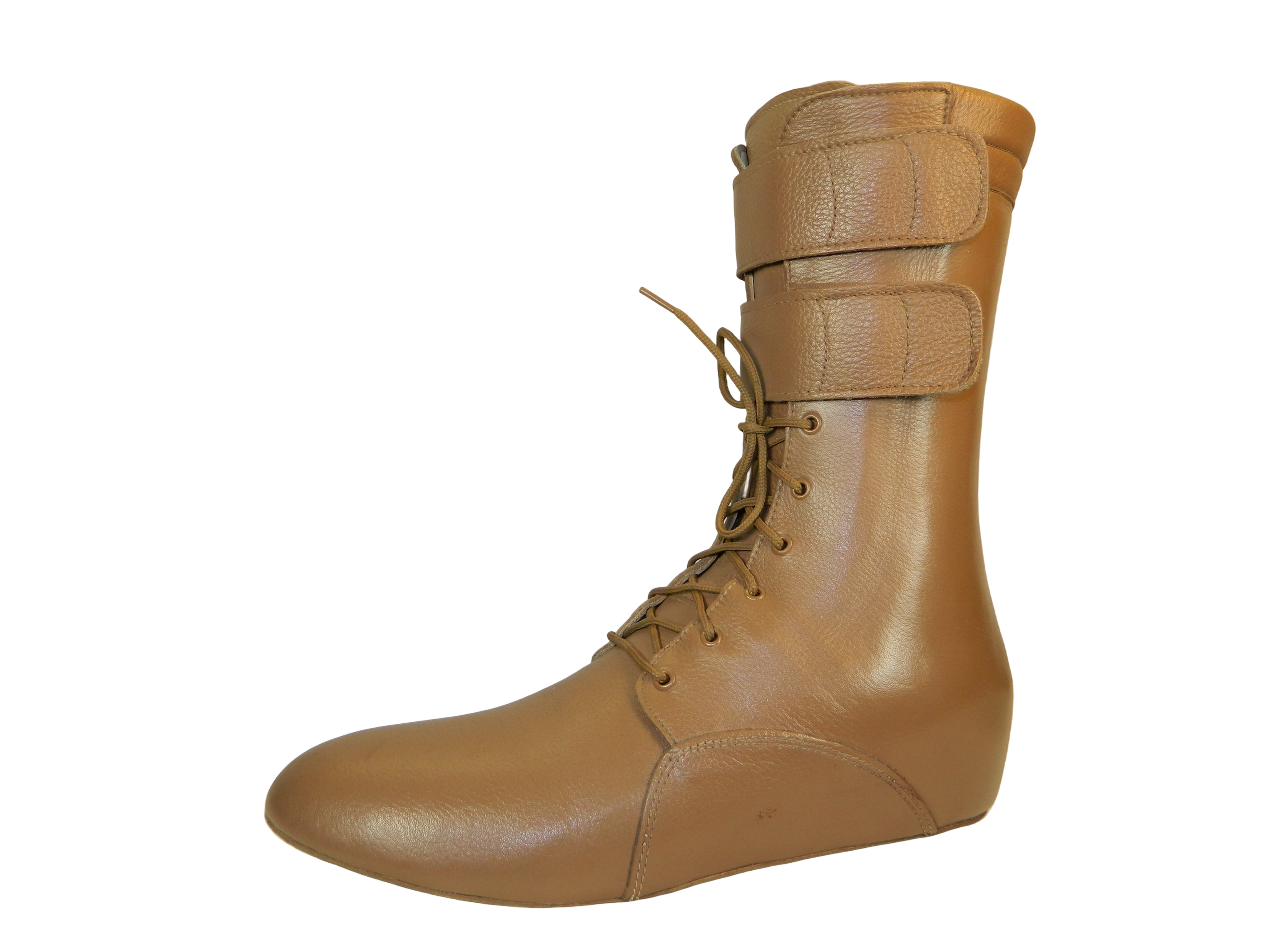

Partial Foot AFO

Partial Foot

Partial Foot Solution

The Partial Foot AFO combines a brace with a partial foot filler, fitted inside a shoe built into the device and covered in leather. Includes a removable multi-density insert for comfort and support.

Clinical Indications

  • Trans-metatarsal amputation
  • Chopart’s amputations
  • Syme’s amputations

Features & Options

  • Full-length footplate
  • Custom, multi-density removable insole
  • Partial foot filler
  • Padded with 1/8″ medical-grade foam
  • Polypropylene shell
  • Carbon footplate

Suggested L Codes

  • L1940 – Ankle foot orthosis, plastic or other material, custom fabricated
  • L2330 – Leather or similar material lacer molded from a model of the patient
  • L2820 – Addition to Lower Extremity Orthosis, Soft Interface for Molded Plastic, Below Knee Section
  • L5000 – Partial foot, shoe insert with longitudinal arch, toe filler

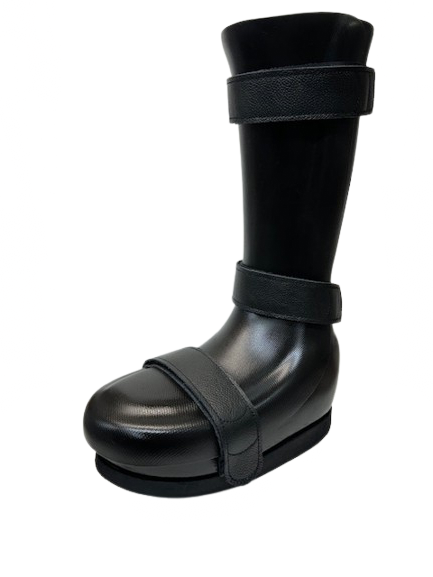

Crow Boot AFO

Crow Boot

Full Immobilization Walker

The Charcot Restraint Orthotic Walker (CROW) is a heavily padded, hard-shelled walker that fully restricts movement in the ankle and foot to protect and prevent further injury or trauma. Recommended for neuropathic patients with severe foot and ankle deformity.

Clinical Indications

  • Neuropathic ulcerations due to diabetes
  • Charcot deformities of the foot and/or ankle
  • Calcaneal or toe amputations
  • Trauma
  • Pre- or post-surgical intervention of mid and hind foot

Product Details

  • Heavily padded, hard-shelled walker design
  • Fully restricts ankle and foot movement
  • Customizable per the practitioner’s discretion
  • Available exclusively through licensed medical providers

Suggested L Codes

  • L4631 – Ankle foot orthosis, walking boot type, varus/valgus correction, rocker bottom, anterior tibial shell, soft interface, custom arch support, plastic or other material, includes straps and closures, custom fabricated

Thermoplastic Traditional

Rigid and articulated thermoplastic AFOs providing maximum stabilization or guided motion for patients requiring traditional orthotic management.

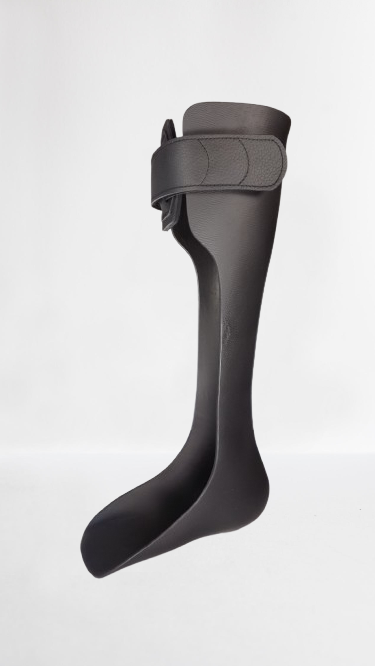

Traditional Solid AFO

Traditional Solid

Solid Ankle Stabilization

A rigid thermoplastic AFO designed for maximum stabilization of the ankle and foot. Provides solid support for patients requiring comprehensive immobilization.

Clinical Indications

  • Foot drop
  • Weak or absent plantar flexors and/or dorsiflexors
  • Severe degenerative arthritis
  • Lateral and medial instability of subtalar joint
  • Trauma

Features & Options

  • Thermoplastic shell
  • Select from three profile designs
  • Metatarsal, sulcus, or full-length footplate
  • Closure with tibial pad

Suggested L Codes

  • L1960 – Ankle foot orthosis, plastic or other material, custom fabricated

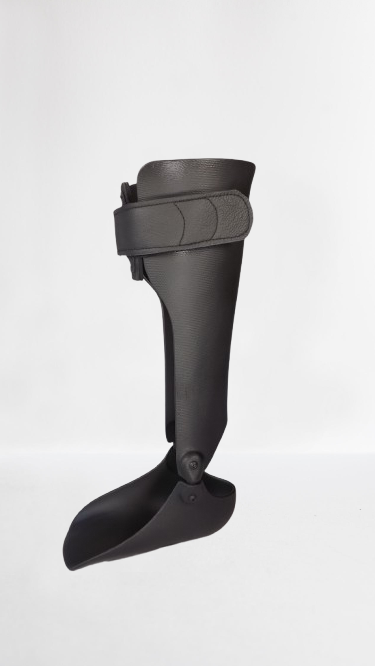

Traditional Articulated AFO

Traditional Articulated

Articulated Thermoplastic Support

A thermoplastic AFO with an articulating ankle joint, providing guided motion and stability. Available with Free Motion or Dorsi-Assist ankle joint options.

Clinical Indications

  • Mild Posterior Tibial Tendon Dysfunction (PTTD)
  • Mild degenerative arthritis
  • Lateral and medial instability of subtalar joint
  • Foot drop
  • Severe pronation
  • Trauma

Features & Options

  • Thermoplastic shell
  • Available with Free Motion or Dorsi-Assist ankle joint (Tamarack)
  • Available with varus or valgus correction
  • Metatarsal, sulcus, or full-length footplate
  • Optional 1/8″ medical-grade foam padding
  • Closure with tibial pad

Suggested L Codes

  • L1970 – Ankle foot orthosis, plastic with ankle joint, custom fabricated

Thermoplastic Active

Dynamic AFOs designed for patients who require precise control of ankle motion with a balance of mobility and support.

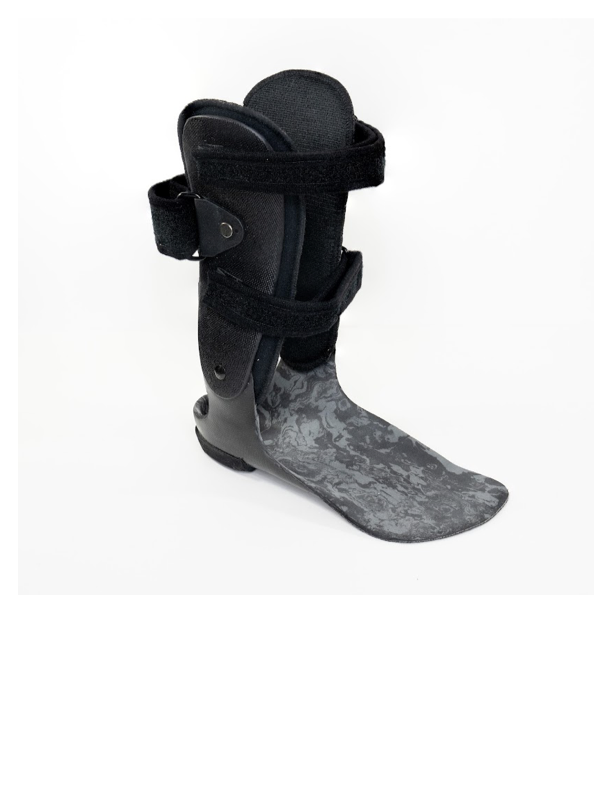

Active Overlap AFO

Active Overlap

Dynamic Ankle Control

An active overlap AFO featuring an integrated ankle axis hinge and heel stabilizer for precise control of ankle motion. Designed for patients requiring a balance of mobility and support.

Clinical Indications

  • Mild to moderate Posterior Tibial Tendon Dysfunction (PTTD)
  • Chronic ankle instability

Features & Options

  • Ankle axis hinge for controlled motion
  • EVA top cover for comfort
  • Removable upright pads
  • 35mm heel cup
  • Top cover extended to metatarsals
  • Heel stabilizer
  • Upright aligned perpendicular to the footplate

Suggested L Codes

  • L1970 – Ankle foot orthosis, plastic with ankle joint, custom fabricated
  • L2820 – Addition to Lower Extremity Orthosis, Soft Interface for Molded Plastic, Below Knee Section

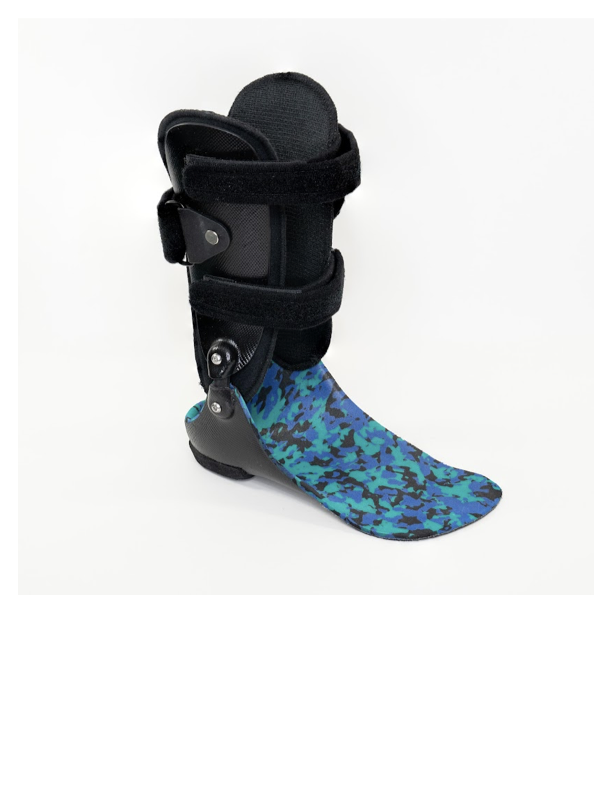

Active Split Upright AFO

Active Split Upright

Bilateral Stability

A custom-molded polypropylene metatarsal-length foot orthosis with 25mm heel cup and integrated custom calf section, featuring a balanced biodynamic forefoot and heel system.

Clinical Indications

  • Posterior Tibial Tendon Dysfunction (PTTD)
  • Lateral & medial instability of subtalar joint
  • Chronic ankle instability
  • Severe pronation
  • Sinus tarsi syndrome
  • Trauma

Features & Options

  • Custom-molded polypropylene metatarsal-length foot orthosis with 25mm heel cup
  • Integrated custom calf section
  • Balanced biodynamic forefoot and heel system
  • Removable medial and lateral soft interface pad system
  • Fully adjustable closure system
  • 100% custom-made

Suggested L Codes

  • L1970 – Ankle foot orthosis, plastic with ankle joint, custom fabricated
  • L2820 – Addition to Lower Extremity Orthosis, Soft Interface for Molded Plastic, Below Knee Section

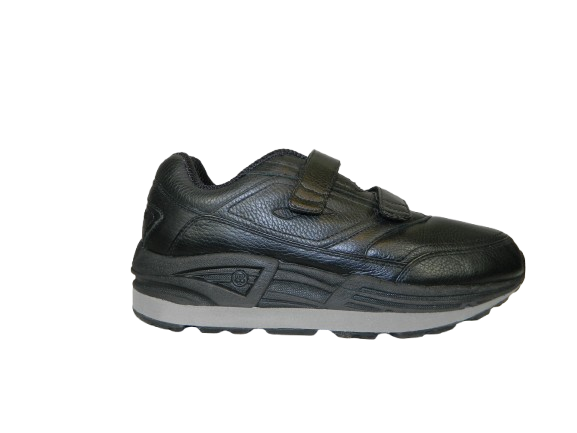

Shoe Modification

Custom shoe modifications including elevations, lifts, rockers, wedges, and flares to accommodate a wide range of gait and structural needs.

Shoe Modification

Shoe Modification

Custom modifications applied to patients' footwear to address gait abnormalities, leg length discrepancies, and pressure redistribution needs. Options include sole elevations, heel lifts, rocker soles, wedges, flares, negative heels, and more.

Common Modifications

  • Sole Elevation & Heel Lifts
  • Rocker Soles (heel-to-toe, double, mid-stance)
  • Wedges & Flares (medial, lateral, heel, sole)
  • Negative Heel & Sach Heel
  • Buttress Flare & Heel Cups
  • Arch Supports & Metatarsal Pads

Suggested L Codes

  • L3300 – Lift, elevation, heel or sole, shoe addition
  • L3340 – Heel wedge, shoe addition
  • L3410 – Addition to lower extremity orthosis, shoe, leather with soft materials

Your Journey to Better Mobility

From your provider's prescription to your custom-fitted AFO, every step is guided by clinical precision and personal attention.

Precision Fabrication

Your custom AFO is handcrafted in our in-house lab using premium materials and your provider's specifications for a precise, comfortable fit.

Custom Fitting & Adjustments

In-office fitting ensures optimal alignment, pressure distribution, and comfort. We fine-tune until you walk with confidence.

Contact Us

Take the first step toward improved mobility. Fill out the form and our team will reach out within one business day.

(818) 430-6416
elegantafo@gmail.com

Office Hours

  • Monday – Friday: 8:00 AM – 5:00 PM PST
  • Saturday – Sunday: Closed

Send Us a Message
